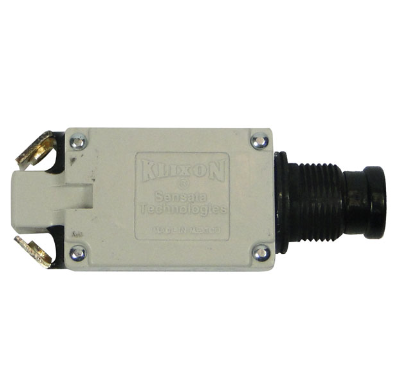

Klixon 7274 series are small, lightweight, low amperage devices that are specifically designed to protect aircraft/aerospace cable and components in airborne vehicles and equipment.
Trip–Free
The 7274 features a trip–free, indicating reset button and is available in standard ratings from ? to 20 amps.
Wiping Action
A "wiping action" contact design assures low voltage drop, faster trip time and high reliability in low voltage applications. They are available in standard ratings from ? to 20 amps.
Water Resistant Panel
A water resistant panel seal designed to fit over the push button actuator is available for applications that require this type of protection.
-
Uses minimum space
-
Light weight
-
Trip–free
-
MIL-C-5809 qualified
-
Current rating: 5 amp
-
Low amp
-
High vibration resistance
-
Typical use: Military airborne vehicle and equipment protection
-
Amp: 5
-
MS#: MS26574-5
-
Vibration: 10G minimum, 50–500 Hz (other vibration levels available)
-
Mechanical Shock: 35G
-
Acceleration: 10G
-
Weight: 7274-2 (MS 26574): 28 grams maximum; 7274-4 (MS 26574 A): 28 grams maximum; 7274-11 (MS 22073): 33 grams maximum; 7274-69 (MS 22073V): 33 grams; 7274-70 (MS 26474L): 33 grams
-
Interrupt Current: 0.50–5 amps: unlimited at 28 VDC; 7.50–15 amps: 2,000 amps at 28 VDC; 0.50–1.50 amps: unlimited at 120 VAC, 400 Hz; 2–5 amps: 800 amps at 120 VAC, 400 Hz; 7.50–20 amps: 500 amps at 120 VAC, 400 Hz
-
Endurance: 2,500 cycles: 120 VAC, 400 Hz inductive; 5,000 cycles: 120 VAC, 400 Hz resistive; 2,500 cycles: 30 VDC inductive; 5,000 cycles: 30 VDC resistive; 10,000 cycles: Mechanical, no load
|
