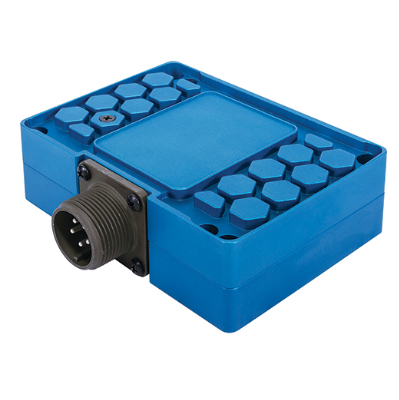

The TC230 DC-to-DC Step-up Converter produces 230 watts from an aircraft's 14-volt system for powering 28-volt avionics, instruments, and accessories — including radios, GPS, and electronic equipments. This 230 watt step-up converter is suitable for nearly any common general, business, or commercial aviation applications.
-
Supplies 230 watts of DC power
-
28 VDC output
-
Lightweight – only 0.70 lb
-
Input transient, overload and short circuit, reverse polarity protection, and temperature monitoring
-
90% nominal efficiency
-
No cooling required
-
FAA TSO C71 certified and RTCA DO-160G qualified
-
Designed in Wichita, Kansas, USA
