The VLS-25M is a solid state electronically regulated power supply with fold-back current limiting to protect the power supply from excessive current or shorted output. Chassis mounted fuse and less than 5mV ripple peak to peak (full load and low line).

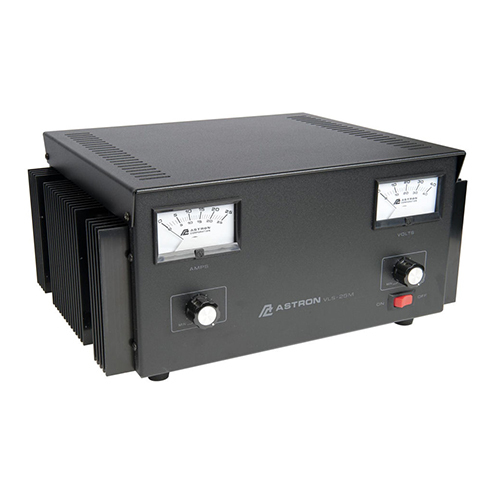

Version VLS-25M is a variable 28 volt DC output, 25 amp, 115 volt AC input power supply with dual meters.
规格:
Weight:
46 lb
Dimensions:
13.75 x 11 x 6 in.
Continuous duty amps:
18 @ 28V, 10 @ 12V, 5 @ 5V
ICS amps:
25 @ 28
Output voltage:
5-32 adjustable
Current limit:
1.5A to full load
特征:
Solid state electronically regulated
Fold-back current limiting
Crowbar over voltage protection
Maintains regulation and low ripple at low line input voltage
Heavy duty heat sink
Three conductor power cord
Separate volt and amp meters
Backlit meters
28 volt DC power supply
Output voltage adjustable from 5-32 volts
Current limit adjustable from 1.5 amps to full load
