The LS-35 Series is a solid state electronically regulated power supply with fold-back current limiting to protect the power supply from excessive current or shorted output. Chassis mounted fuse and less than 5mV ripple peak to peak (full load and low line).

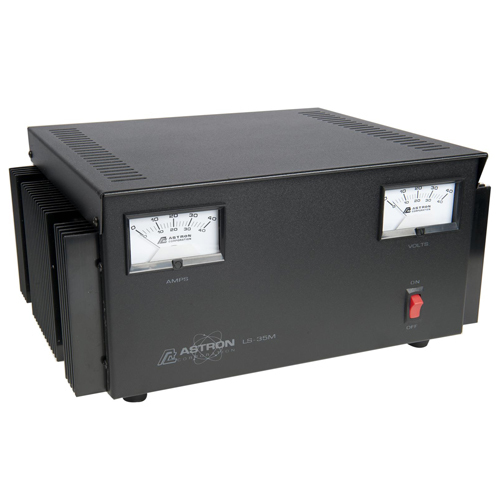

Version LS-35M is a 28 volt DC output, 35 amp, 115 volt AC input power supply with dual meters.
规格：
Weight:
49 lb
Dimensions:
13.75 x 12.125 x 6 in.
Continuous duty amps:
27A @ 28V
ICS amps:
35A @ 28V
Output voltage:
28 Volts DC (Adjustable from 22.0-32.0 Volts DC)
Current limit:
1.5A to full load
特征：
Solid state electronically regulated
Fold-back current limiting
Crowbar over voltage protection
Maintains regulation and low ripple at low line input voltage
Heavy duty heat sink
Three conductor power cord
28 volt DC power supply
Output voltage adjustable from 22-32 volts
Current limit adjustable from 1.5 amps to full load
